MAX430 CAMORG

MAX430 CAMORG

Colors
Accessories Colors
External dimensions 464 x 366 x 176 mm / 18.27 x 14.41 x 6.93 inch
Internal dimensions 426 x 290 x 159 mm / 16.77 x 11.42 x 6.26 inch
Cover depth - bottom 45 + 114 mm / 1.77 + 4.49 inch
Weight 3,74 Kg
Capacity 19,64 Lt
Addition info

Materials:

  • Polypropylene
  • Nylon (Latches)
  • Polimero (O-ring)
  • POLYURETHANE (foam)
  • Non-crosslinked foam
  • Polyester tape
  • Polyester thread

External dimensions

464 x 366 x 176 mm / 18.27 x 14.41 x 6.93 inch

Internal dimensions

426 x 290 x 159 mm / 16.77 x 11.42 x 6.26 inch

Cover depth - bottom

45 + 114 mm / 1.77 + 4.49 inch

Weight

3,74 Kg

Capacity

19,64 Lt

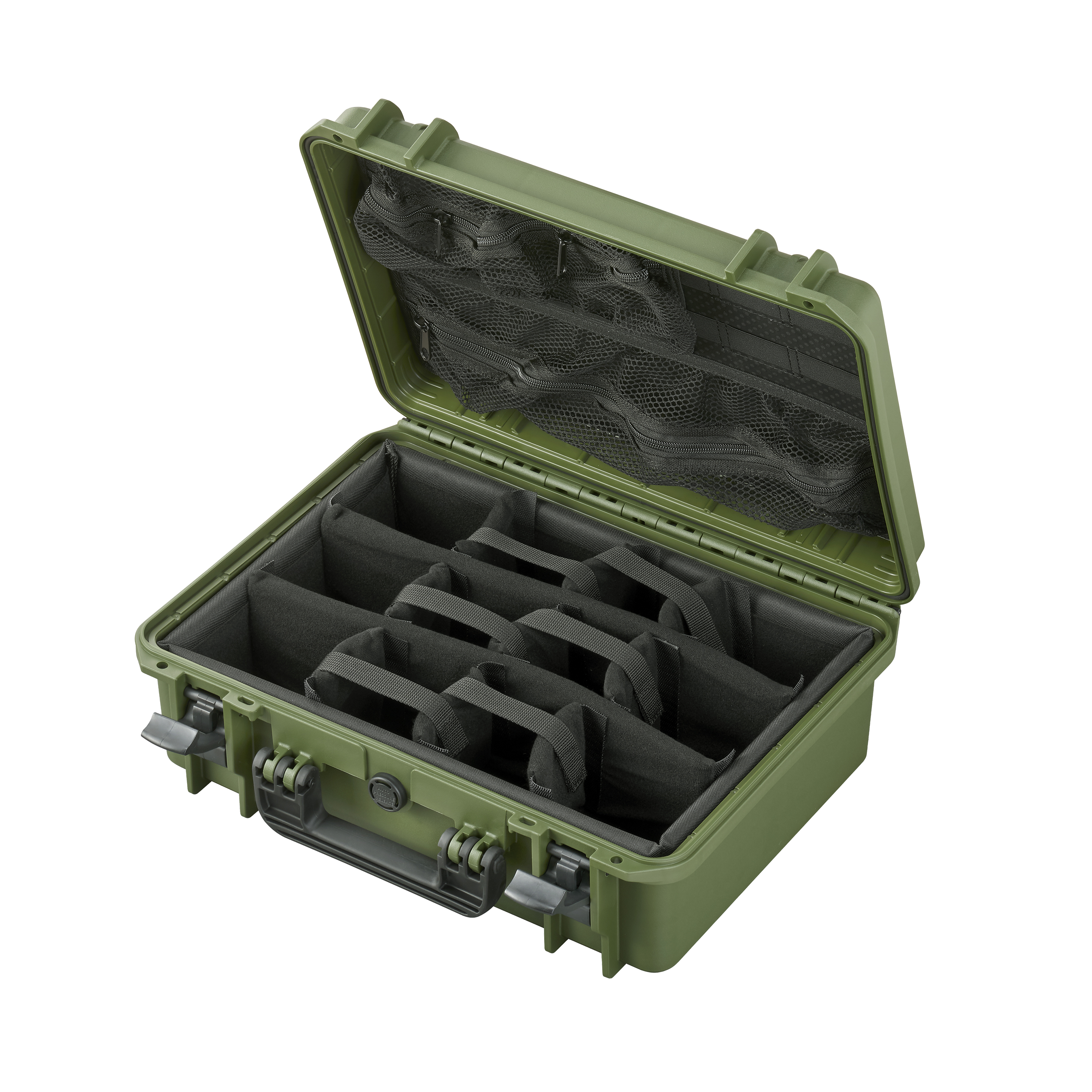

MAX430 CAMORG waterproof protective case. Internal dimensions 380 x 270 x 160 mm.

Padded dividers set with movable compartments to better organize and protect your instruments. Lid organizer with zipl closures and document pouch.

MAX cases are our watertight line, designed to offer superior protection from the elements, including water, dust, and impacts, making them ideal for transporting fragile and valuable products. These cases are IP67 rated and ATA300 Cat. 1 certified for airplane transportation. They have also been military tested according to STANAG 4280 and DEF STAN 81-41 protocols, ensuring their suitability for a wide range of applications such as marine, photography and broadcasting, scuba diving, outdoor sports, medical, military, special corps, industrial packaging, and the manufacturing industry. Moreover, they are UN4H2 certified to transport Lithium Ion batteries for dangerous goods and 100% Made in Italy

Key Features:

  • Watertight seal around the lid
  • Automatic pressure release valve
  • Easy-to-open double throw latches
  • Load-tested soft-grip handle
  • Holes for double padlocking
  • Full-length hinges
  • Nylon pins 30% fiberglass filled for corrosion resistance
  • Stackable design

Downloads

  • Datasheet

  • 2D Draw

  • IP67

  • STANAG 4280 - DEF STAN 81-41

  • MILSTD 810

  • ATA300

  • CAMORG Set Configuration
