MAX540H190TR

MAX540H190TR

Colors
Accessories Colors
External dimensions 604 x 473 x 225 mm / 23.78 x 18.62 x 8.86 inch
Internal dimensions 538 x 405 x 190 mm / 21.18 x 15.94 x 7.48 inch
Cover depth - bottom 50 + 140 mm / 1.97 + 5.51 inch
Weight 6.40 Kg
Capacity 41,40 Lt
Addition info

Materials:

  • Polypropylene
  • Nylon (Latches)
  • Polimero (O-ring)
  • METAL + PLASTIC (Trolley)
  • STEEL PIN (Stainless wheels)

External dimensions

604 x 473 x 225 mm / 23.78 x 18.62 x 8.86 inch

Internal dimensions

538 x 405 x 190 mm / 21.18 x 15.94 x 7.48 inch

Cover depth - bottom

50 + 140 mm / 1.97 + 5.51 inch

Weight

6.40 Kg

Capacity

41,40 Lt

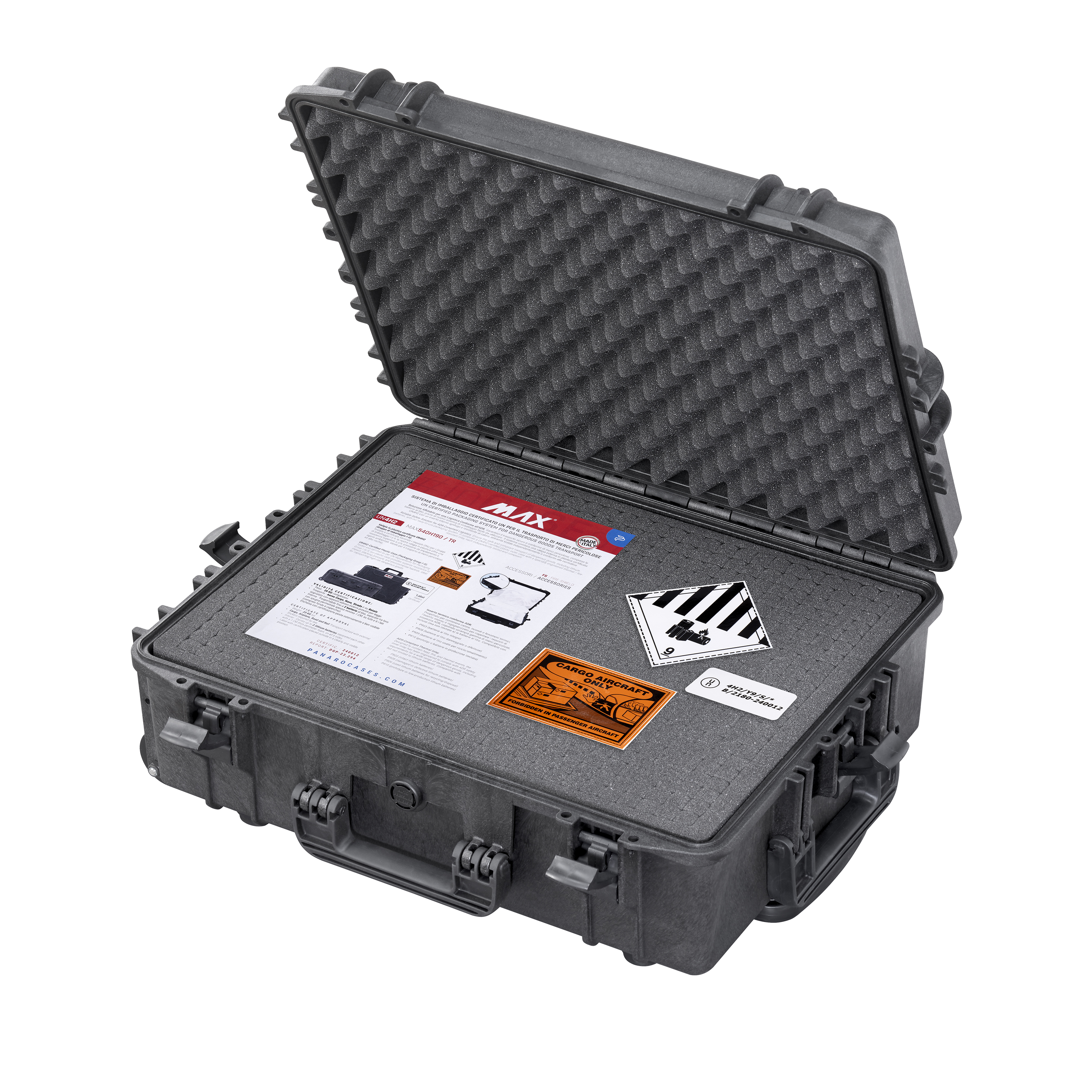

Introducing the MAX540H190TR waterproof case, equipped with wheels and an extendable handle. Internal dimensions: 538 x 405 x 190mm

MAX cases are our watertight line, designed to offer superior protection from the elements, including water, dust, and impacts, making them ideal for transporting fragile and valuable products. These cases are IP67 rated and ATA300 Cat. 1 certified for airplane transportation. They have also been military tested according to STANAG 4280 and DEF STAN 81-41 protocols, ensuring their suitability for a wide range of applications such as marine, photography and broadcasting, scuba diving, outdoor sports, medical, military, special corps, industrial packaging, and the manufacturing industry. Moreover, they are UN4H2 certified to transport Lithium Ion batteries for dangerous goods and 100% Made in Italy

Key Features:

  • Watertight seal around the lid
  • Automatic pressure release valve
  • Easy-to-open double throw latches
  • Load-tested soft-grip handle
  • Holes for double padlocking
  • Full-length hinges

Downloads

  • Datasheet

  • 2D Draw

  • IP67

  • STANAG 4280 - DEF STAN 81-41

  • MILSTD 810

  • UN4H2
